Embedded Motor Controller Family

HVC 4x

Flex Servo-Drives for Direct Control of Electric Motors (Stepper / BLDC / BDC)

Short Description

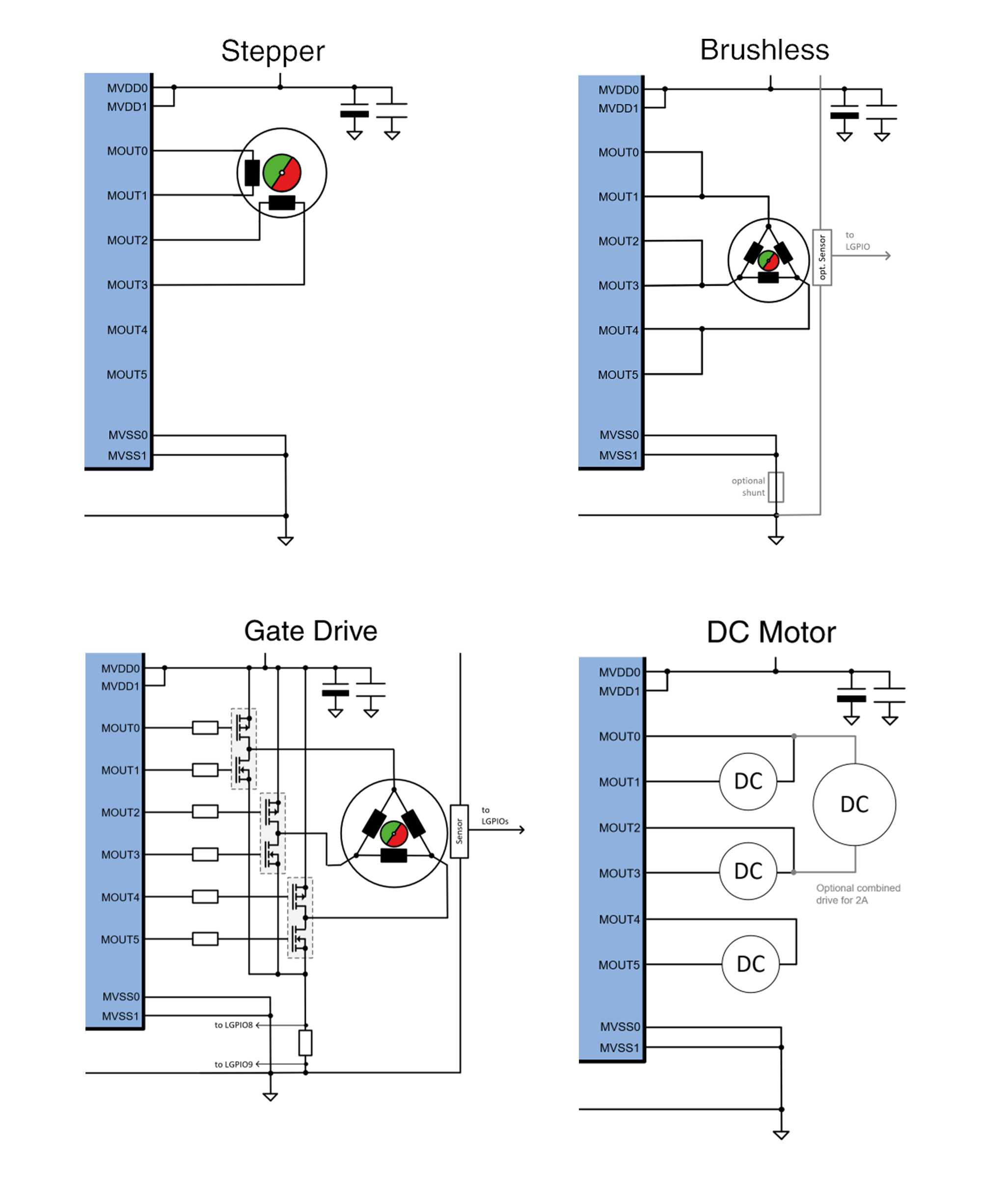

The HVC 4x flex servo-drive family from TDK-Micronas enables cost-effective realization of high-performance compact electric motor control. The new HVC 4422F offers extended memory size to address the OEM diagnostic requirements and allows operation in high-temperature environments. An integrated MPU supports RTOS requirements. Powered by a 32-bit CPU core (Arm® Cortex®-M3), the HVC controllers economically address growing challenges in the automotive market and beyond (industrial, consumer, instrumentation, etc.). The flexible peripherals of the product provide all means to directly control brush-type, stepper (bipolar or three phase), or brushless (BLDC) motors directly via the integrated high-performance half-bridges without the need for external driver components.

Beside timers/counters, interrupt controller, multichannel ADC, SPI, and enhanced PWMs with diagnostic functions, these devices contain an advanced LIN UART with a LIN 2.x transceiver, as well as voltage regulators to connect the device directly to an automotive board net. Various power management modes optimize current consumption. The HVC family further features a flash program memory with a size of 32 kbytes (HVC 4222/4223) or 64 kbytes (HVC 4420F/4422), providing high flexibility in code development, production ramp-up, and in-system firmware update.

Various integrated digital and analog circuit units such as comparators with virtual star point reference, current scaling and an embedded programmable gain amplifier allow users to minimize the number of external components. The computation capacity supports complex motor control algorithms such as Space Vector Modulation (SVM) for Permanent-Magnet Synchronous Motors (PMSM) in addition to six-step commutation with sensor feedback or sensorless control, as well as various stepper configurations.

HVC Variants
HVC 4222F: 32k Flash, 2k RAM, TA = 150 °C
HVC 4223F: 32k Flash, 2k RAM, TA = 125 °C
HVC 4420F: 64k Flash, 4k RAM, TA = 125 °C
HVC 4422F: 64k Flash, 4k RAM, TA = 150 °C

Block diagram – System Architecture

Downloads

Main features

  • Arm® Cortex®-M3 core with on-chip two-wire debug interface
  • 2 kbyte RAM (HVC 4222F, HVC 4223F)
  • 4 kbyte SRAM (HVC 4420F, HVC 4422F)
  • 32 kbyte flash memory (HVC 4222F, HVC 4223F)
  • 64 kbyte flash memory (HVC 4420F, HVC 4422F)
  • NVRAM
  • Integrated Memory Protection Unit (MPU) supports RTOS requirements (HVC 4420F, HVC 4422F)
  • Two on-chip oscillators (no external crystal needed)
  • 5.4 V to 18 V operation with dual-mode
  • 40 V load-dump resistance
  • Integrated N-channel MOSFET halfbridges with charge pump
  • LIN 2.1 compliant
  • Digital and window watchdog timers with different, independent clocks
  • Comparators with integrated virtual star point and reference currents
  • 12-bit multi-channel ADC
  • Programmable gain amplifier
  • 16-bit free-running counter with three capture/compare-modules
  • Two 16-bit timers
  • Synchronous serial peripheral inter-face (SPI)
  • Enhanced PWMs (EPWMs) drive the half-bridge FETs with non-overlapping edge/center-aligned signals
  • Power supply for external devices
  • Voltage, current, and temperature supervision
  • PQFN40 package (6 × 6 mm2)
  • Up to 160 °C junction temperature
  • Up to 150 °C ambient temperature

All products of this family

HVC 4222F

Package: QFN40
Ordering Code: HVC4222F-DL
Interface: LIN, SPI, UART
Temp. Range: -40°C - 160°C
Contact Sales

HVC 4223F

Package: QFN40
Ordering Code: HVC4223F-DL
Interface: LIN, SPI, UART
Temp. Range: -40°C - 150°C
Contact Sales

HVC 4420F

Package: QFN40
Ordering Code: HVC4420F-DL
Interface: LIN, SPI, UART
Temp. Range: -40°C - 150°C
Contact Sales

HVC 4422F

Package: QFN40
Ordering Code: HVC4422F-DL
Interface: LIN, SPI, UART
Temp. Range: -40°C - 160°C
Contact Sales
